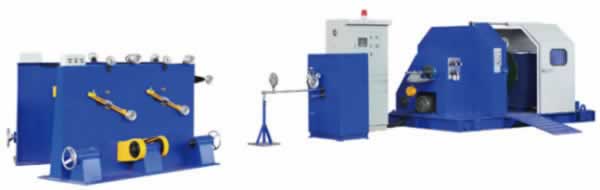

Cantilever Single Twist Bunching Machine

Usage
Our cantilever single twist bunching machine is an all-in-one cable production machine. The single twist machine can manufacturer various data cables by stranding the cable and taping the cover for use as soft conductors, computer cables and other control cable applications.

Inquiry Form
Main Technical Parameter
Model F-630 F-800 F-1000 F-1250
Pay-off bobbin dia. Φ400mm-φ500mm-φ630mm
Take-up bobbin dia. φ630mm Φ800mm Φ1000mm Φ1250mm
Applicable wire dia. Φ0.6mm-3.0mm Φ1.0mm-5.0mm
Main motor power 11kw 15kw 15kw 20kw
Max. lay-up dia. Φ15 Φ20 Φ25 Φ30
Twisting pitch 20-200mm 30-300mm 30-350mm 30-350mm
No. of rotate 1000r/min 800r/min 600r/min 550r/min
Traversing distance 2mm-12mm 3mm-20mm 3mm-30mm 3mm-30mm
